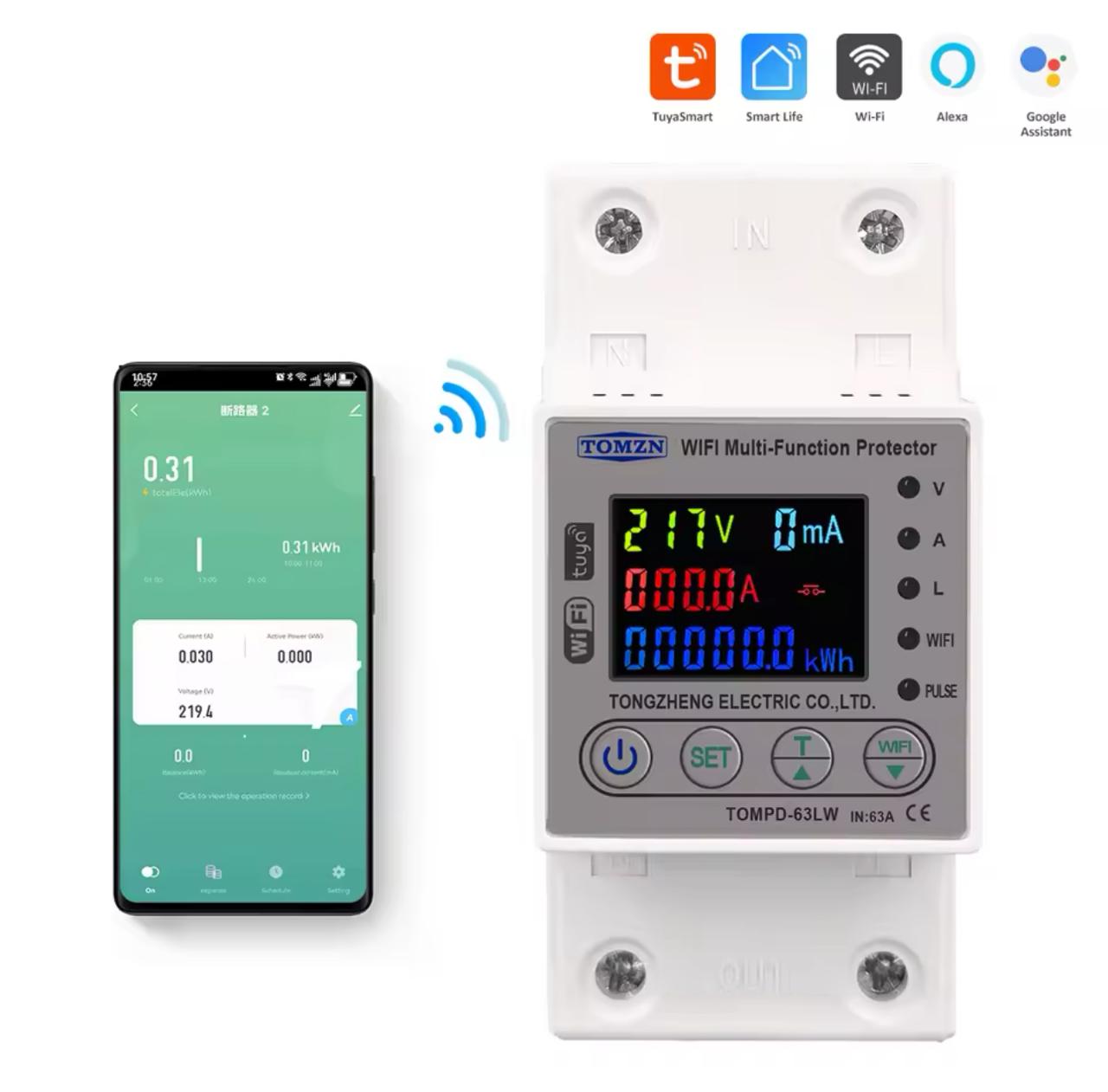

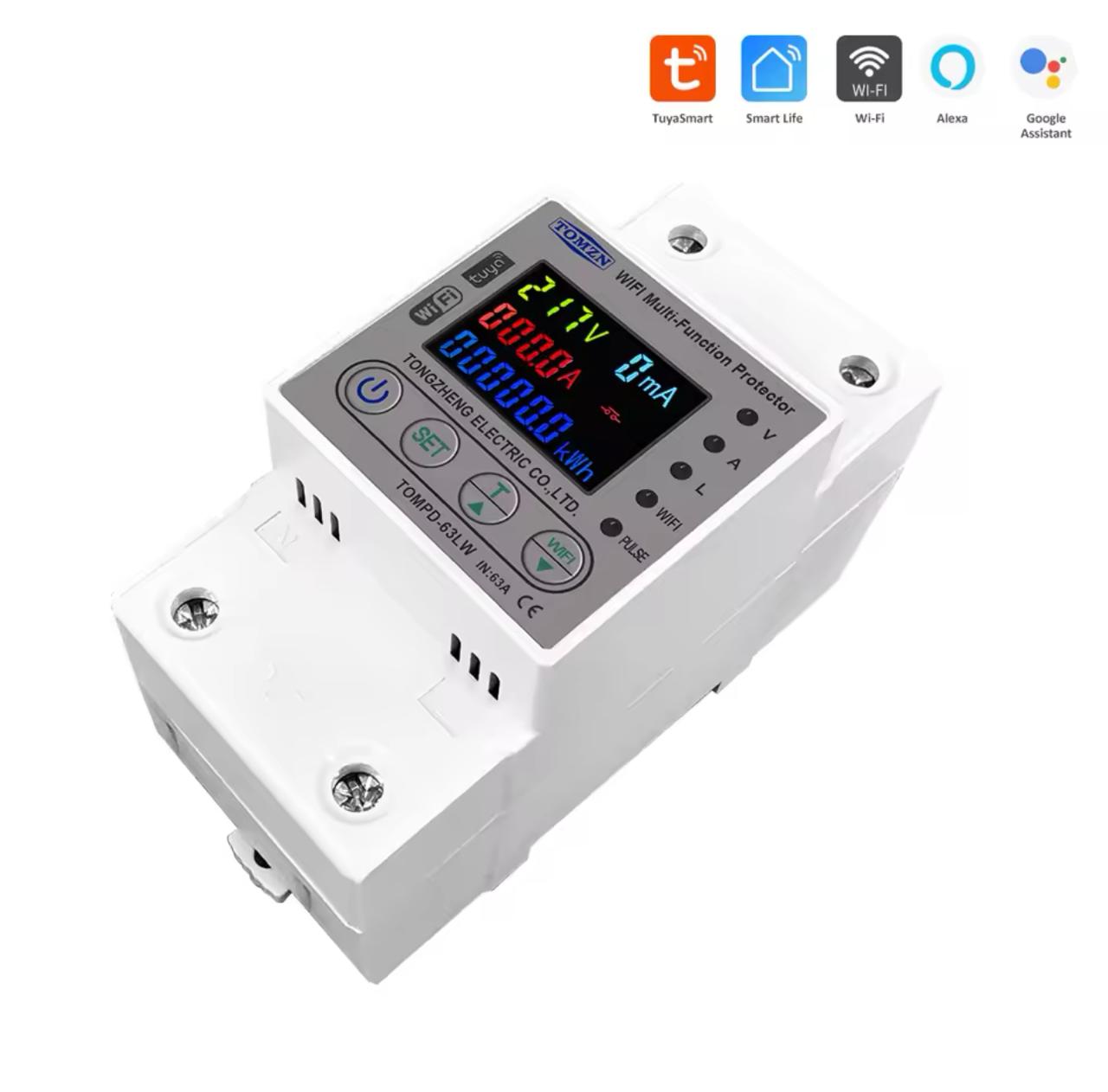

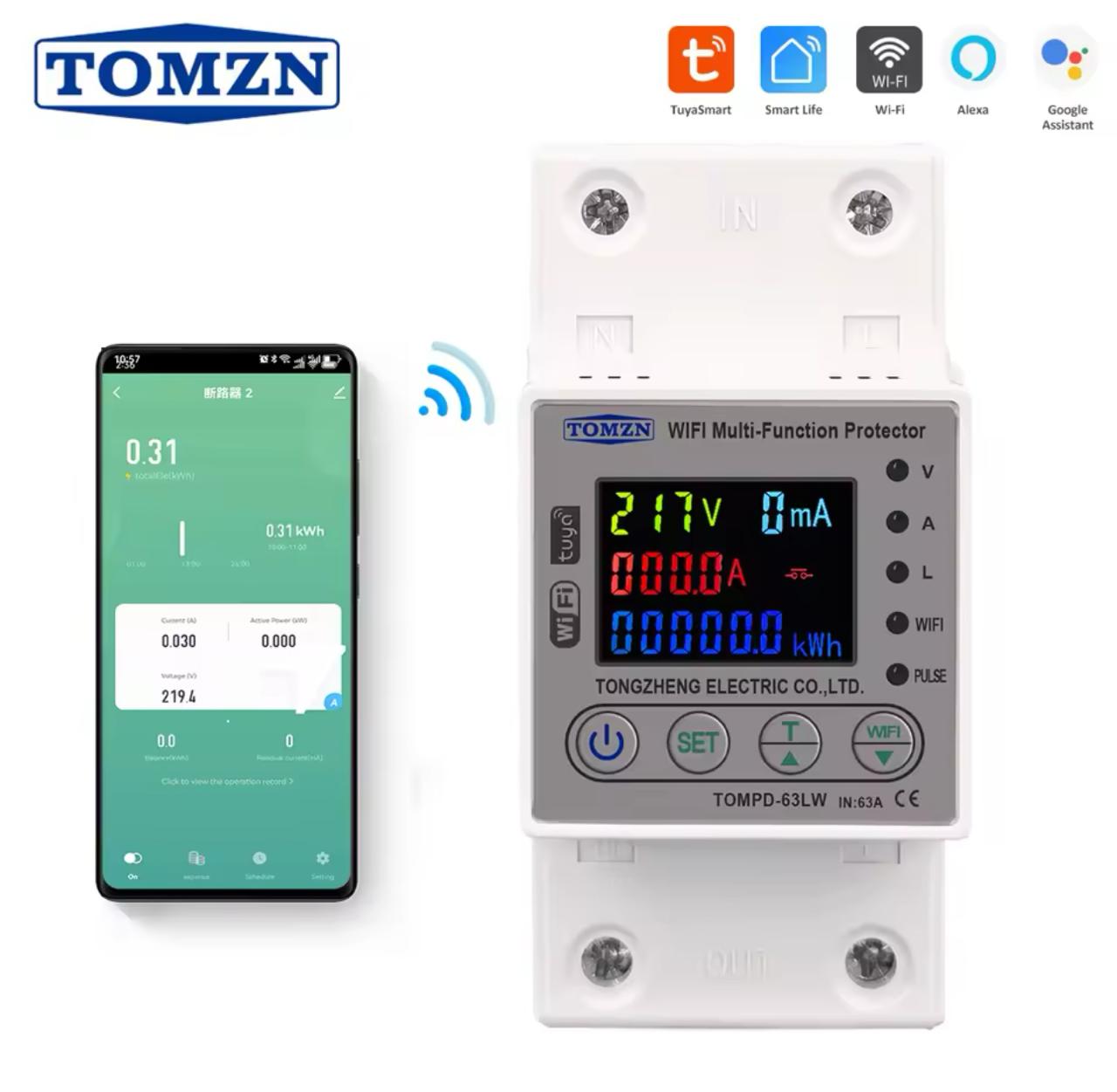

Complete Electrical Protection — Controlled From Your Phone.

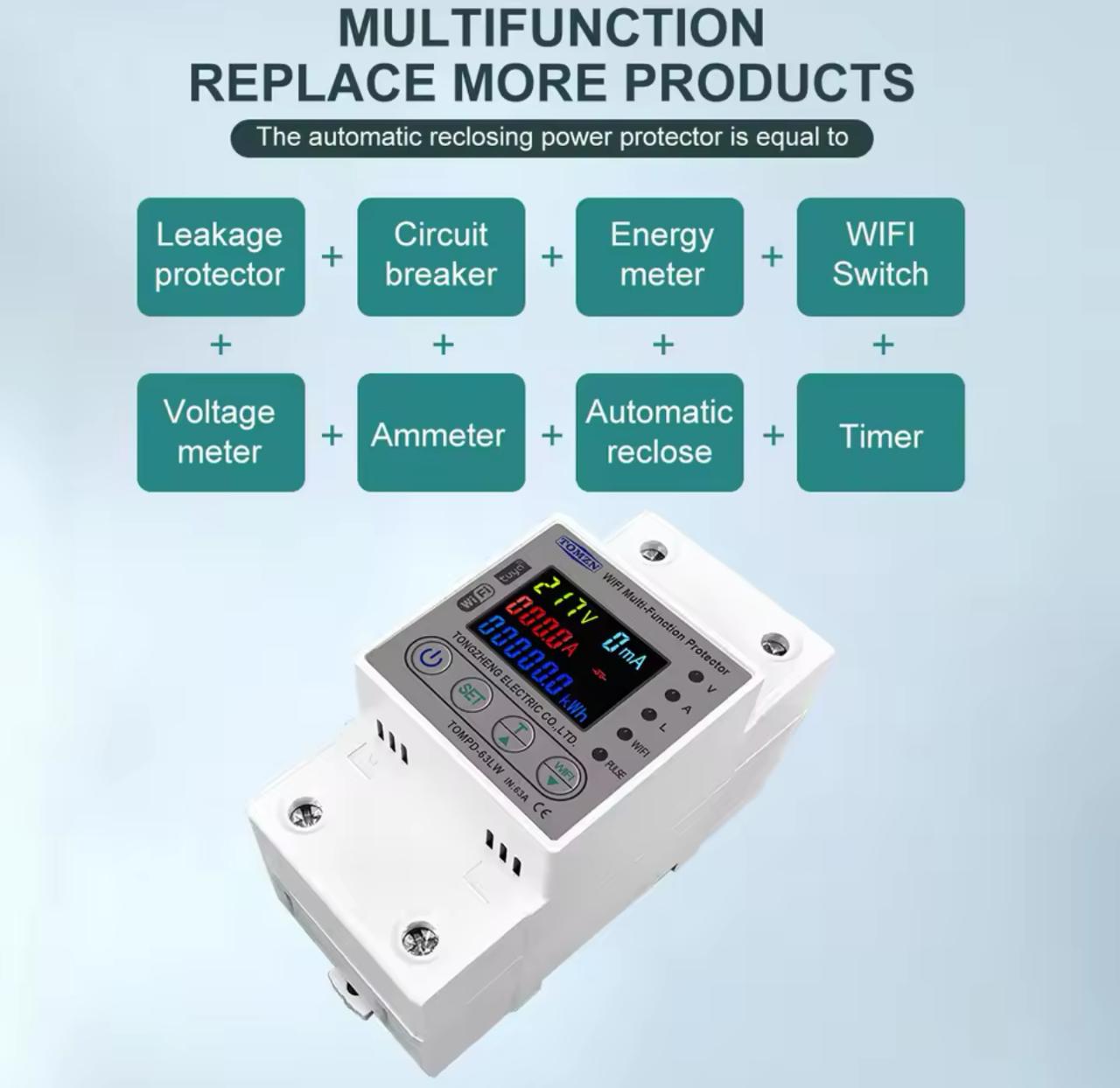

One breaker. Ten smart functions. The Tomzn Smart WiFi Breaker 10-in-1 (TOMPD-63LW) is engineered for Pakistan's demanding grid conditions — protecting your home or business from voltage spikes, current overloads, and leakage faults, while giving you full remote control and real-time monitoring from anywhere via the Tuya / SmartLife app.
With cuts on both Live and Neutral lines and a white backlit display, this is a premium-grade smart breaker built for those who take electrical safety seriously.
✅ Key Benefits
- Dual Line Cut (L & N) — Disconnects both Live and Neutral lines for complete circuit isolation — a critical safety feature not found on basic breakers.
- Remote ON/OFF Control — Switch your circuit on or off from anywhere, anytime using the Tuya / SmartLife app on iOS or Android.

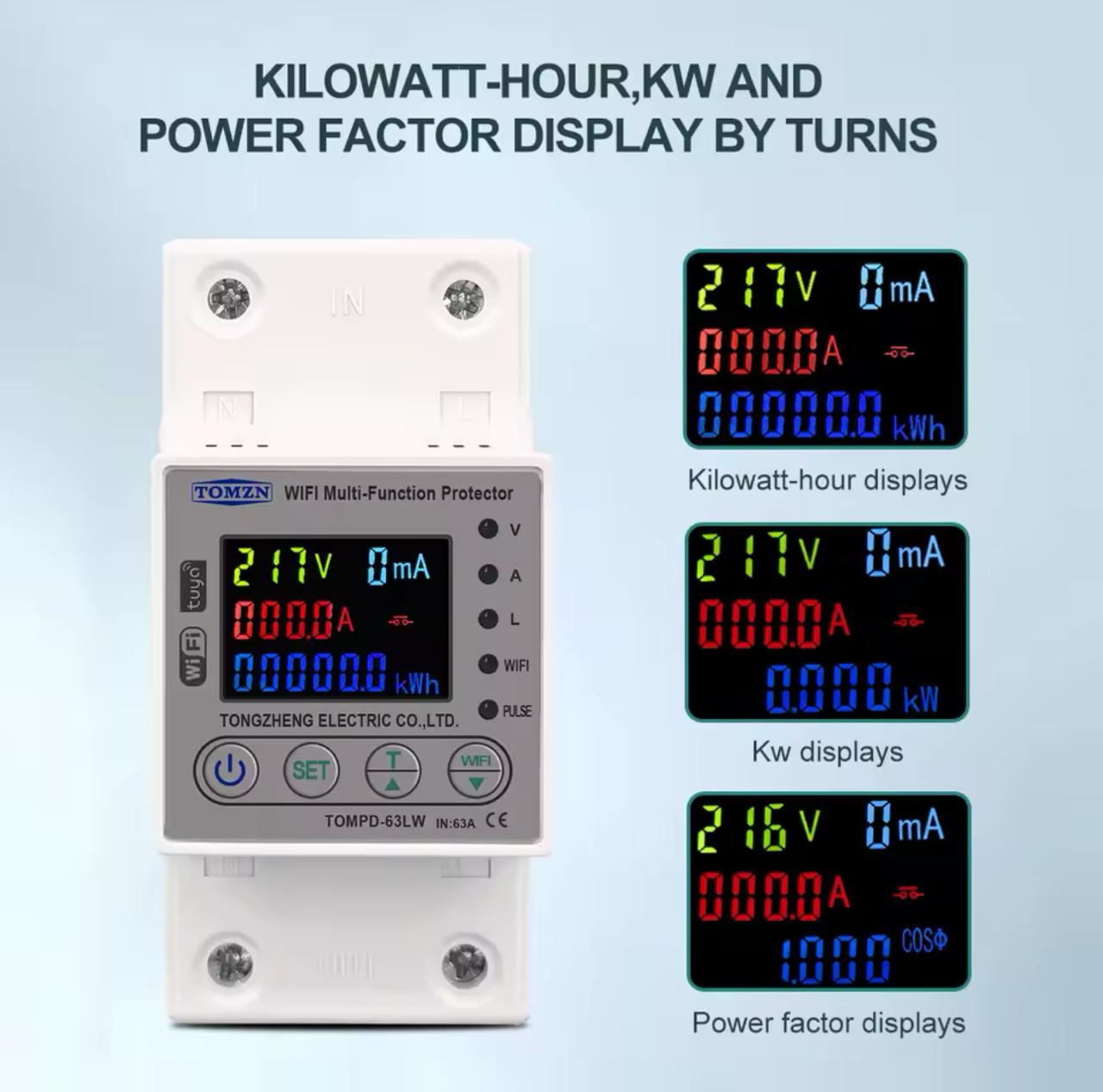

- Real-Time Monitoring — View live current, voltage, leakage current, and total kWh consumption directly on your phone.
- Adjustable Over-Voltage Protection — Configurable from 225V–295V (default 265V) to automatically trip before voltage spikes damage your appliances.
- Adjustable Under-Voltage Protection — Set your lower safe limit from 140V–210V (default 170V) — essential for areas with frequent low-voltage supply.
- Adjustable Over-Current Protection — Set from 1A–63A (default 40A) to prevent overloads and reduce fire risk.
- Configurable Reconnect Delay — Set a safe reconnect delay of 1s–500s (default 30s) after a trip, protecting appliances from immediate power surges on restoration.
- Adjustable Action Time — Control how quickly the breaker responds to a fault (1–30s, default 1s) for fine-tuned protection.
- Voltage/Current/kW Calibration — Fine-tune readings with ±9.9% calibration for accurate monitoring.

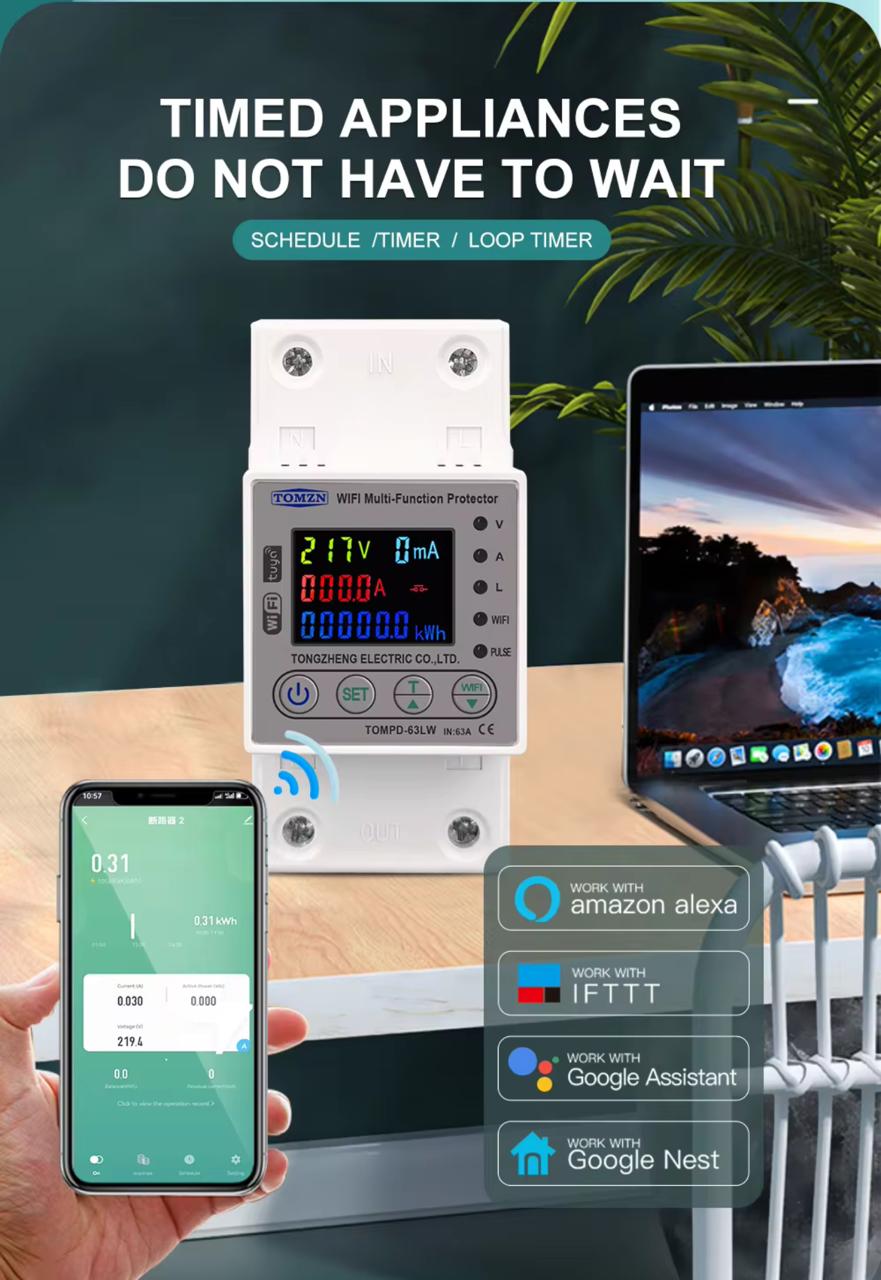

- Timer & Scheduling — Automate ON/OFF cycles via the app for geysers, pumps, and other appliances.

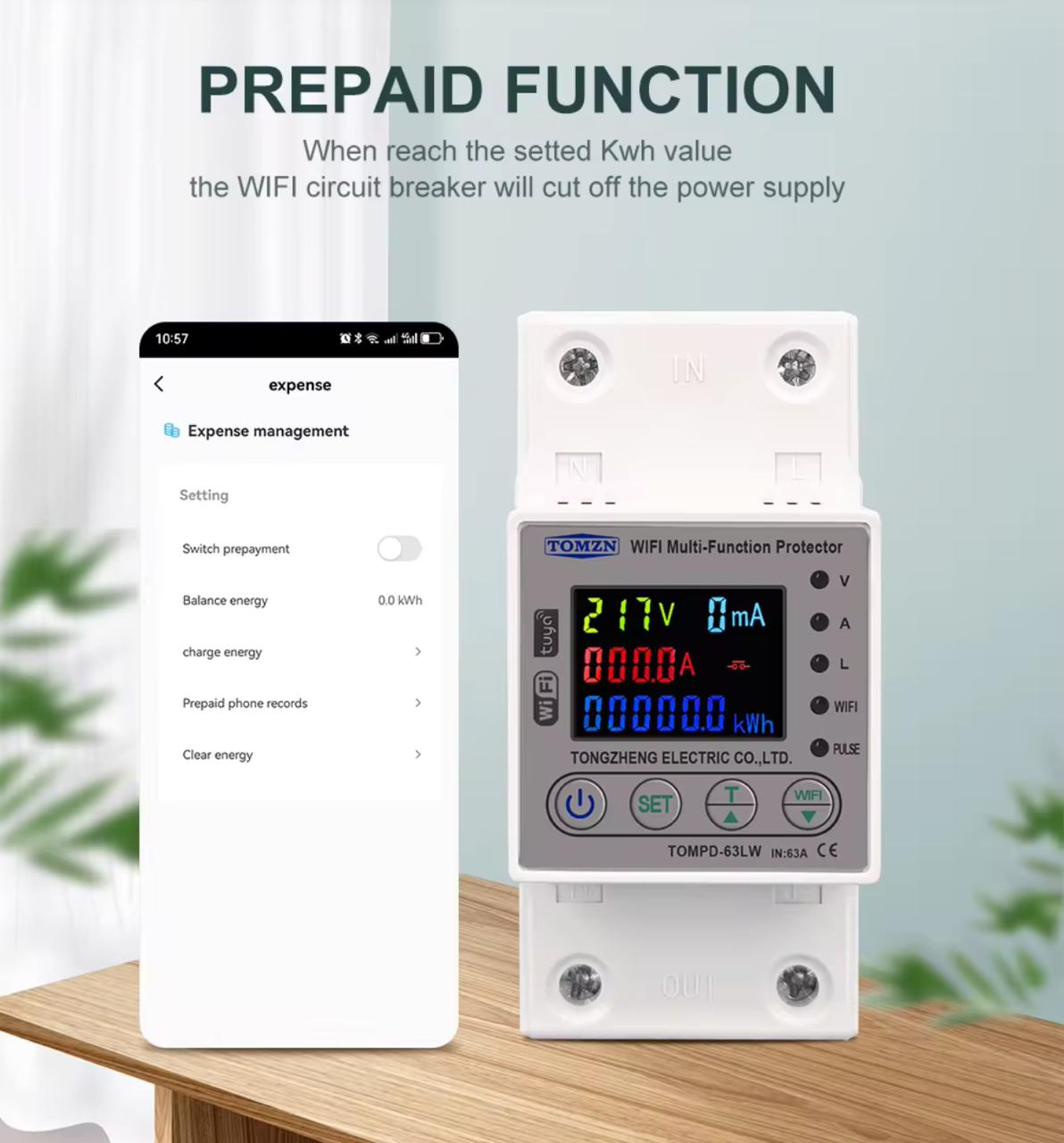

- Prepaid Meter Function — Monitor and manage electricity consumption — ideal for rental units and shared spaces.
- Ultra-Low Power Draw — Consumes less than 2W, so it protects without adding to your bill.
📋 Technical Specifications
| Model | TOMPD-63LW |
| Rated Voltage | 230V AC |
| Frequency | 50Hz / 60Hz |
| Line Cut | L & N (both lines) |
| Under-Voltage Protection | 140V – 210V (Adjustable, default: 170V) |
| Over-Voltage Protection | 225V – 295V (Adjustable, default: 265V) |
| Over-Current Protection | 1A – 63A (Adjustable, default: 40A) |
| Reconnect Delay | 1s – 500s (default: 30s) |
| Action Time | 1s – 30s (default: 1s) |
| Calibration | ±9.9% |
| WiFi | 2.4 GHz only (not 5G) |
| Compatible App | Tuya / SmartLife (iOS & Android) |
| Display | White backlit |
| Power Consumption | <2W |
📦 What's in the Box
1× Tomzn TOMPD-63LW Smart WiFi Breaker 10-in-1
