Dual Display. Triple Protection. Total Peace of Mind.

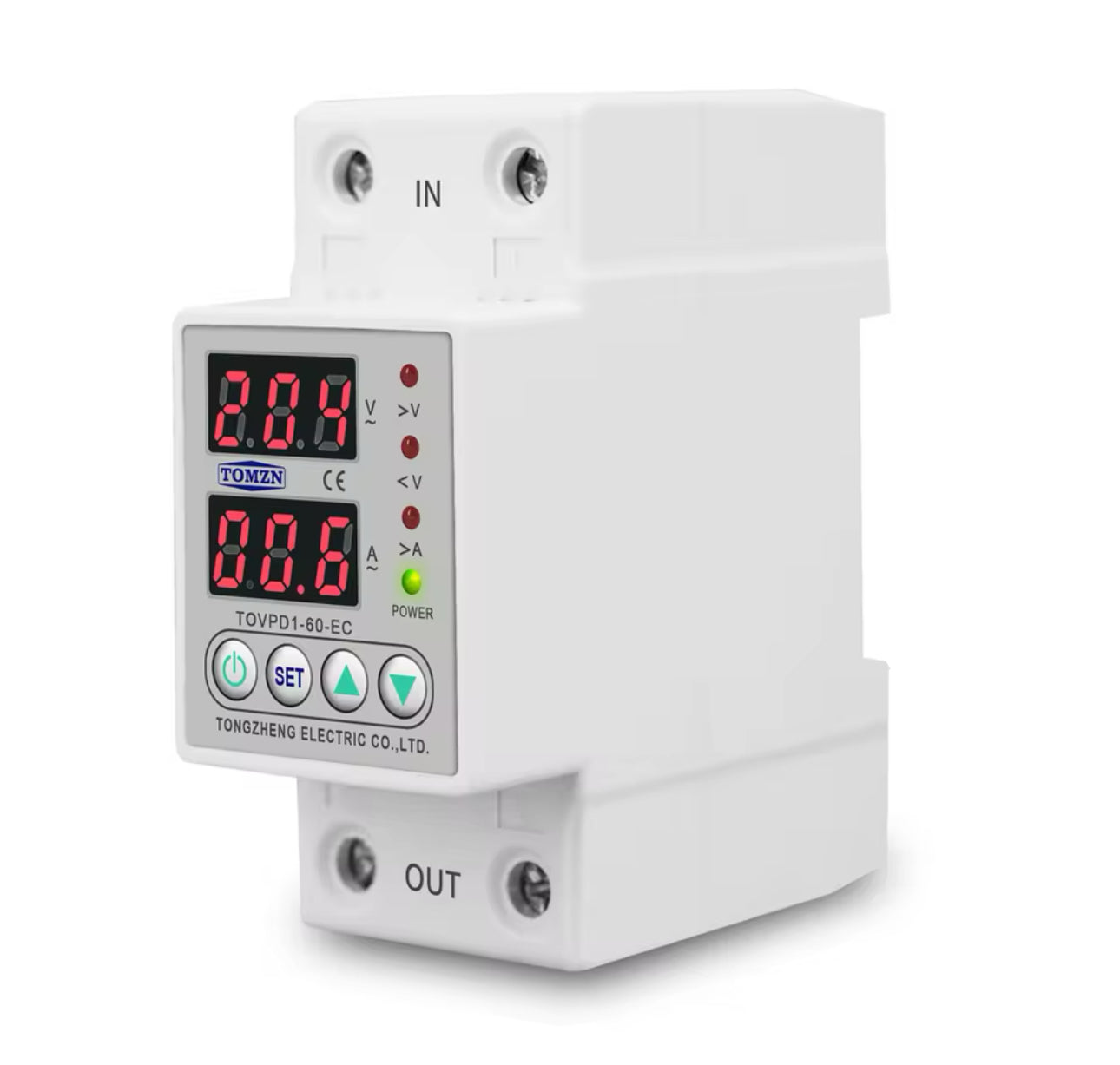

Voltage fluctuations and overcurrent events are silent killers for your appliances and equipment. The Din Rail Dual Display Adjustable Over/Under Voltage & Current Protective Device (TOVPD1-60-EC) gives you real-time visibility of both voltage and current on a clear dual display, while automatically tripping the circuit the moment conditions go outside your set safe limits.
With fully adjustable protection thresholds, configurable action times, and automatic recovery, this is a set-and-forget solution for homes, offices, and industrial panels.
✅ Key Benefits

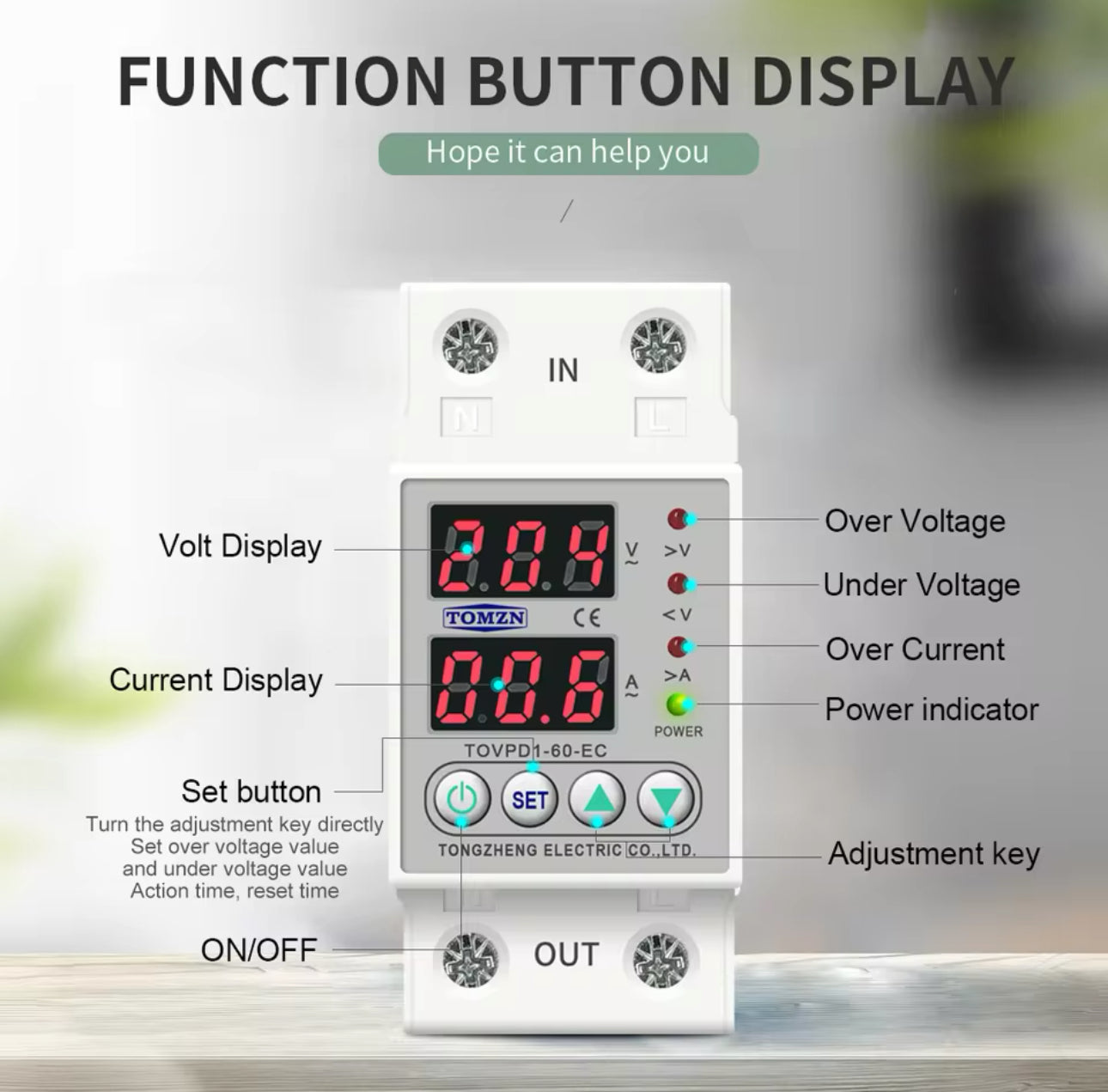

- Dual Display (Voltage & Current) — See live voltage and current readings at a glance on the built-in display — no separate meter needed.
- Adjustable Over-Voltage Protection — Set your upper safe limit (230V–300V, default 270V) with configurable action time (0.1s–30s) and auto-recovery delay (1s–500s).
- Adjustable Under-Voltage Protection — Protect against low-voltage damage with a configurable lower threshold (140V–210V, default 170V) — essential for Pakistan's grid.
- Adjustable Over-Current Protection — Set current limits from 1A–63A (or 1A–40A depending on model) to prevent overloads and equipment damage.
- Automatic Recovery — Reconnects automatically after a configurable delay once voltage/current returns to safe levels — no manual reset needed.
- Voltage Calibration — Fine-tune voltage readings with ±10% calibration for accurate monitoring.
- Power-On Delay — Configurable power-on delay (1s–500s, default 10s) protects appliances from surge on startup.

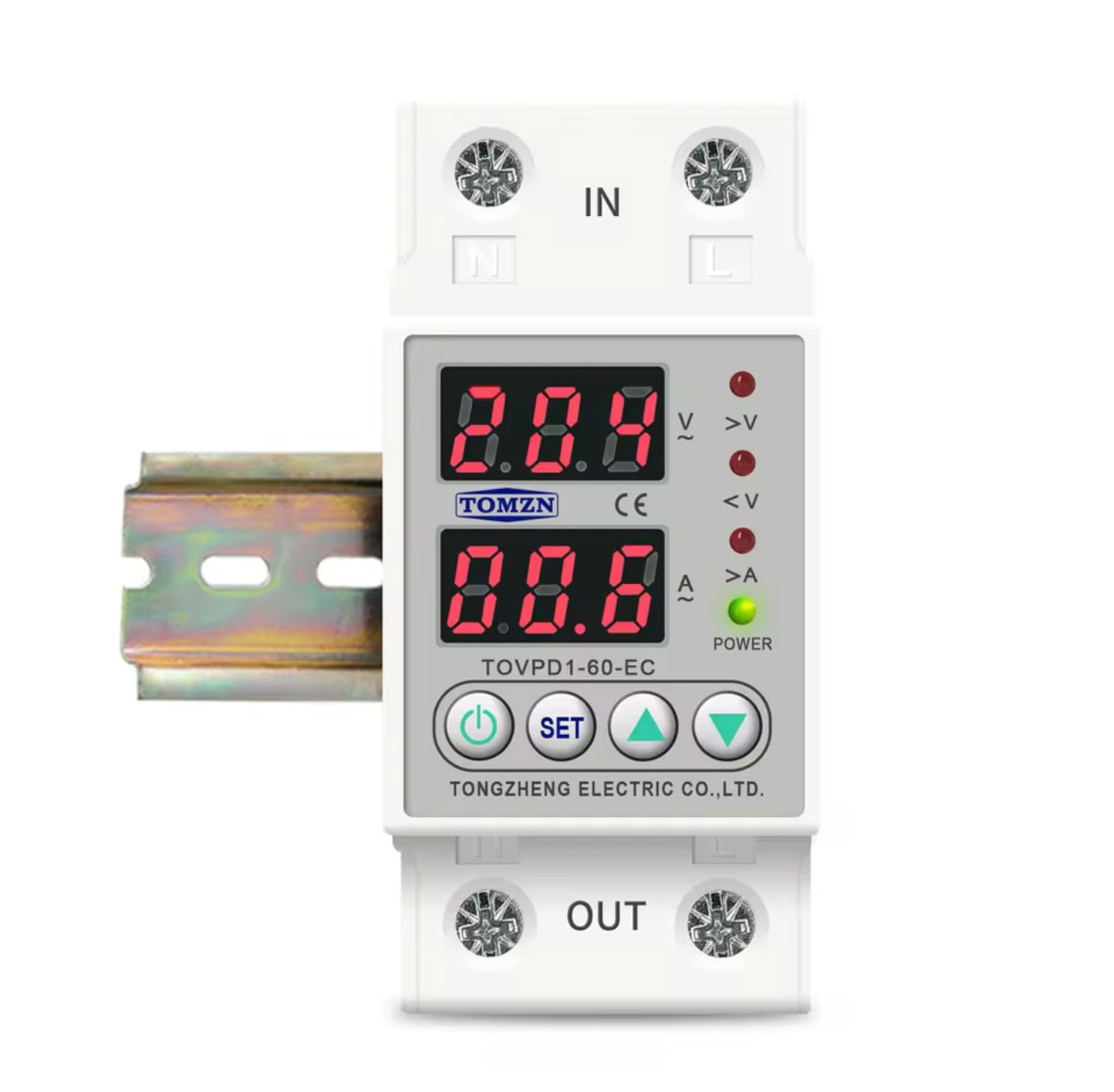

- DIN Rail Mount — Standard 35mm DIN rail installation for easy panel integration.
- Long Service Life — Rated for 100,000 electrical operations.
📋 Technical Specifications (230V Version)
| Model | TOVPD1-60-EC |
| Power Supply | 230V AC, 50/60Hz |
| Max Load Current | 1–40A or 1–63A (Adjustable) |
| Over-Voltage Protection | 230V–300V (default: 270V) |
| Over-Voltage Recovery | 225V–295V (default: 250V) |
| Under-Voltage Protection | 140V–210V (default: 170V) |
| Under-Voltage Recovery | 145V–215V (default: 190V) |
| Action Time | 0.1s – 30s (default: 0.5s) |
| Recovery Delay | 1s – 500s (default: 30s) |
| Power-On Delay | 1s – 500s (default: 10s) |
| Voltage Calibration | ±10% |
| Power Consumption | <2W |
| Electrical Life | 100,000 operations |
| Installation | 35mm DIN Rail |
📦 What's in the Box
1× TOVPD1-60-EC Din Rail Dual Display Voltage & Current Protector
