Single-Phase Surge Protection — Guard Your Home from Lightning & Grid Spikes.

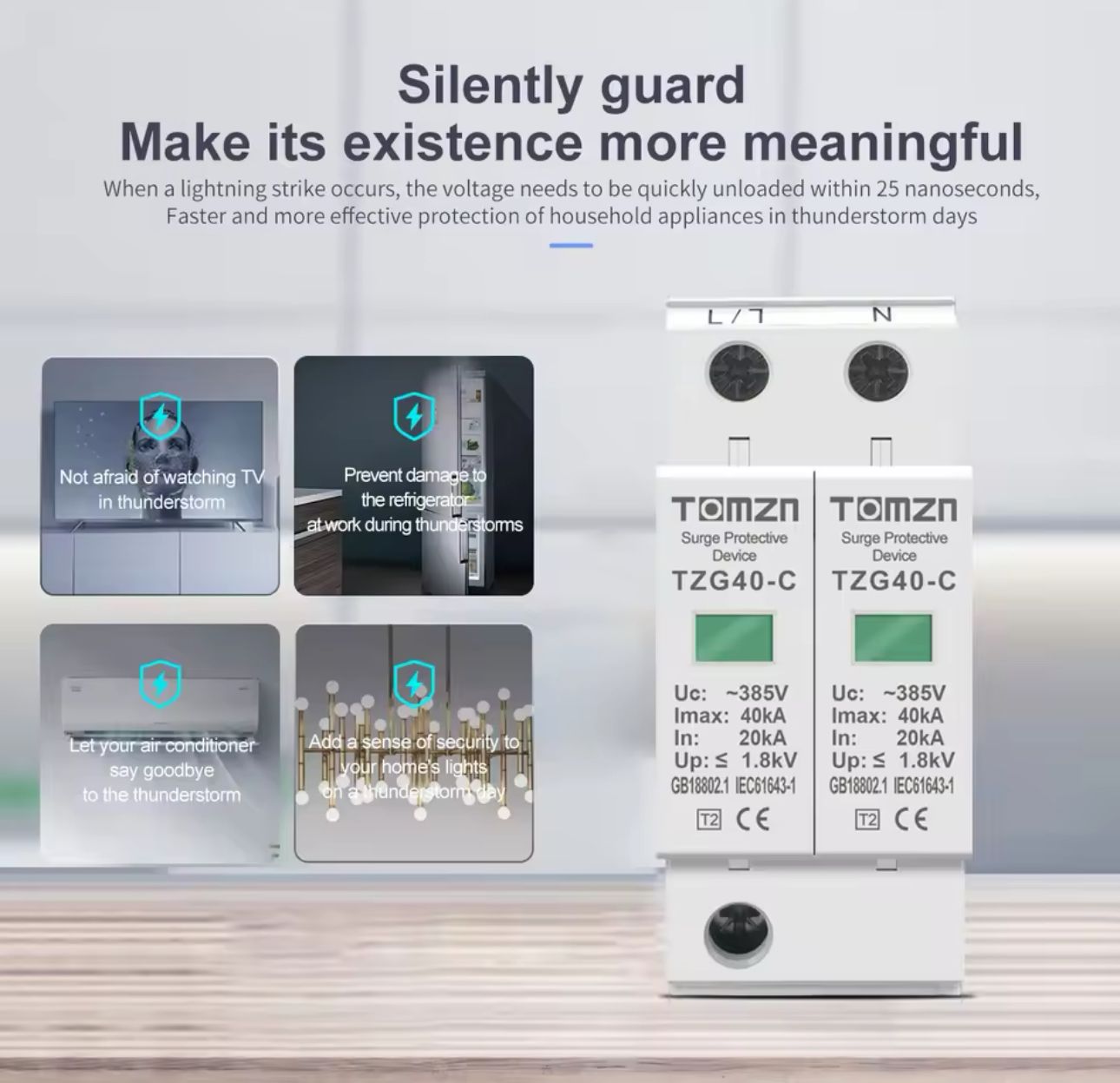

A power surge from a lightning strike or grid fault can destroy your appliances in milliseconds. The TOMZN TZG40-C AC SPD 1P+N is a compact, IEC/EN 61643-1 certified surge protection device designed for single-phase residential and commercial distribution systems — absorbing and diverting dangerous transient overvoltages before they reach your equipment.
✅ Key Benefits
- Lightning & Surge Protection — Protects your electrical system and connected appliances from lightning-induced and switching transient overvoltages.
- 1P+N Configuration — Covers both the live and neutral conductors in a single-phase system for complete protection.
- High Discharge Capacity (20–40KA) — Handles significant surge events with a short circuit current rating up to 10kA (8/20μs).
- Wide Voltage Compatibility — Rated for 230/400V AC, 50/60Hz — suitable for standard Pakistani single-phase supply.
- IEC/EN 61643-1 Certified — Meets international standards for surge protective devices.
- DIN Rail Mount — Easy installation in standard distribution boards and electrical panels.
📋 Technical Specifications
| Model | TZG40-C (TOMZN) |
| Configuration | 1P+N |
| Rated Voltage | ~320–385V AC |
| System Voltage | 230/400V AC, 50/60Hz |
| Nominal Discharge Current | 20KA |
| Max Discharge Current | 40KA |
| Short Circuit Current | Up to 10kA (8/20μs) |
| Standard | IEC/EN 61643-1 |
| Installation | DIN Rail |
| Application | Residential & commercial single-phase systems |
📦 What's in the Box
1× TOMZN TZG40-C AC SPD 1P+N
🛡️ Why Choose Energy Hub?
We're Pakistan's trusted source for smart home and solar electrical solutions. Every product we carry is tested for local grid conditions.
Order today and get it delivered to your door. Have questions? Chat with us before you buy.
