EARU 100A Tuya WiFi Smart Single-Phase Energy Meter & Protector

Monitor, Protect & Control Your Single-Phase Power — From Your Phone.

The 100A Tuya WiFi Smart Single-Phase Energy Meter is a comprehensive power management device that combines real-time energy monitoring, adjustable over/under voltage protection, overcurrent protection, leakage protection, temperature protection, and a prepaid metering function — all in one compact DIN-rail unit connected to your smartphone via the Tuya/SmartLife app.

With a built-in memory function that retains kWh, voltage, and current settings even after a power cut, this meter keeps working reliably through Pakistan's frequent outages.

✅ Key Benefits

• Real-Time Energy Monitoring — Track live power consumption up to 99,999.9 kWh directly on your phone.
• Adjustable Over-Voltage Protection — 120V–300V (default 275V) — trips automatically to protect appliances from grid spikes.
• Adjustable Under-Voltage Protection — 80V–210V (default 175V) — protects sensitive equipment from low-voltage damage.
• Adjustable Over-Current Protection — 1A–100A (default 100A) to prevent overloads.
• Leakage Current Protection — Auto-reconnects up to 5 times (adjustable 1–30/OFF); after 3 leakage trips, requires manual reset for safety.
• Temperature Protection — Adjustable 10–85°C to prevent overheating damage.
• 4 Timing Modes — Schedule, Countdown, Cycle Timing, and Inching Mode for full automation.
• Configurable Reconnect Delay — 10–90s (default 30s) to protect appliances from surge on power restoration.
• Memory Function — Retains kWh readings, voltage, and current protection values after power cuts.
• Prepaid Metering — Set electricity credit limits — ideal for landlords managing tenant electricity billing.
• Bidirectional Measurement — Measures energy in both directions, suitable for solar PV net metering setups.

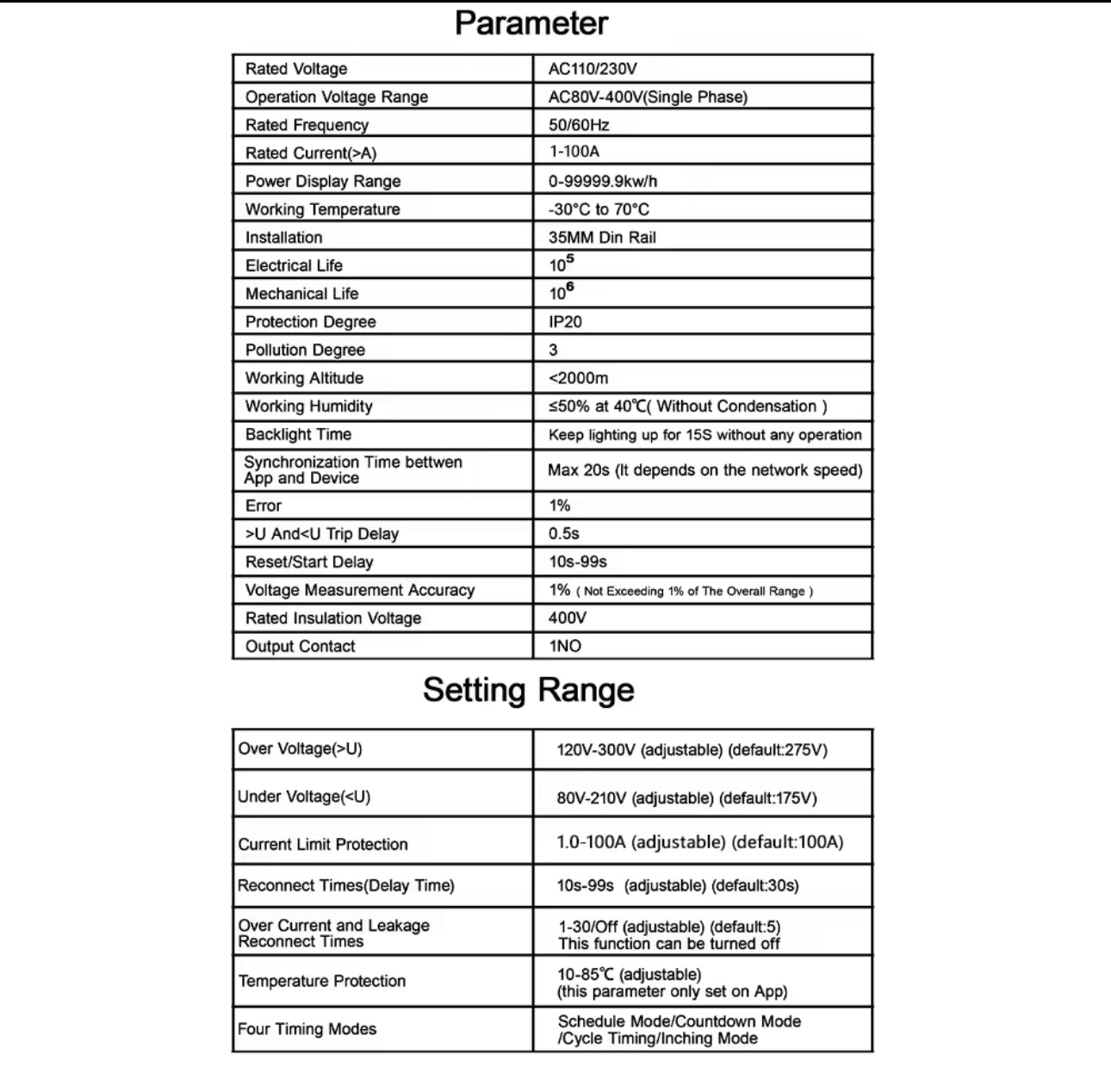

📋 Technical Specifications

📦 What's in the Box

1× 100A Tuya WiFi Smart Single-Phase Energy Meter
